After creating a workflow, you need to configure its triggers, actions, and execution settings. This guide walks you through each configuration step in the Workflow Builder.

​
Prerequisites

​
Configuration steps

Configuring a workflow involves three steps:
  1. Configure triggers: Define when and how your workflow activates
  2. Configure actions: Specify what your workflow does when triggered
  3. Configure execution mode: Choose how actions are processed

​
Step 1: Configure triggers

Triggers determine when your workflow activates. In the Workflow Builder, you’ll configure execution settings that control trigger behavior.

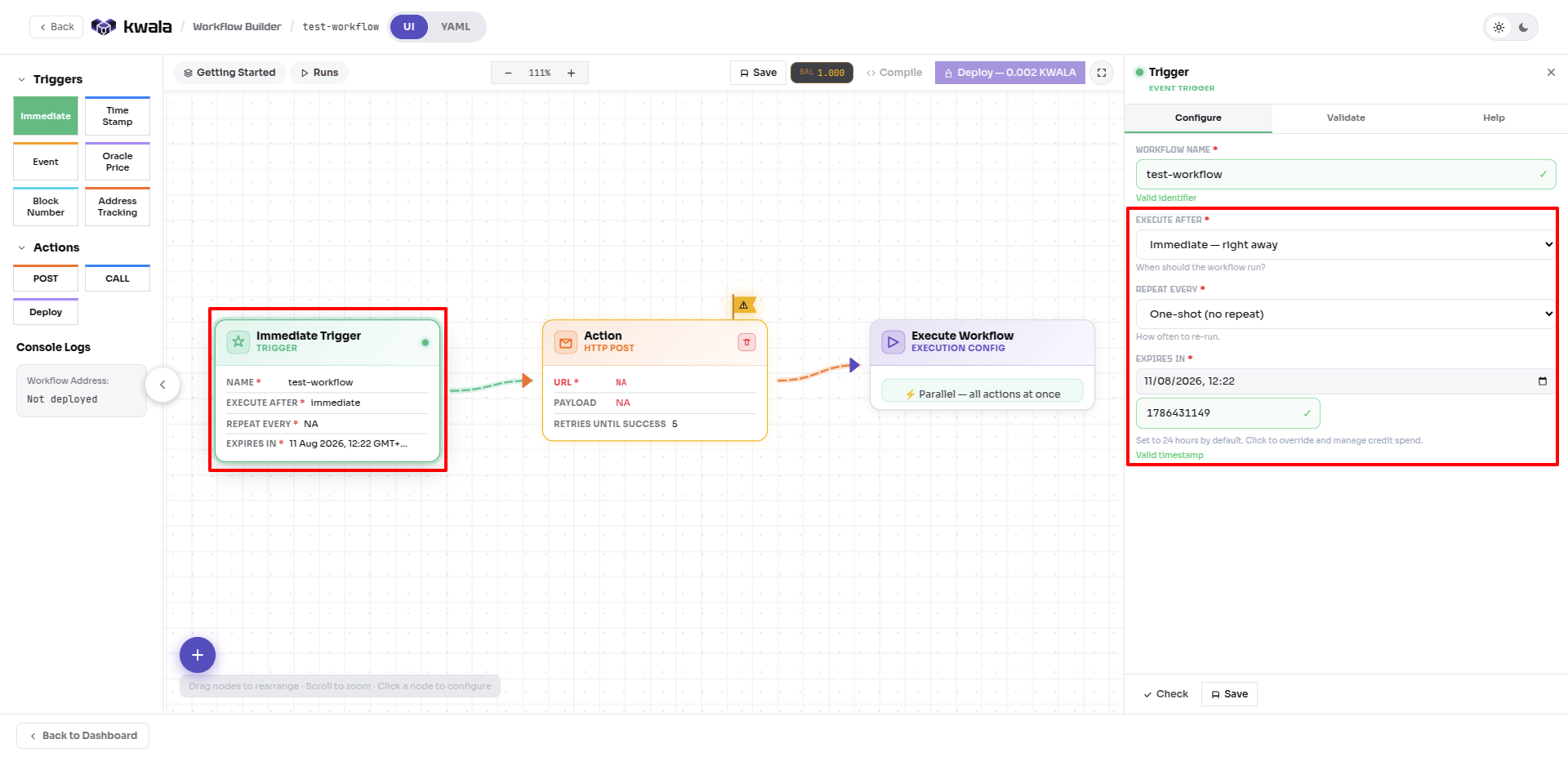

Trigger configuration settings

​
Required trigger fields

The required fields for trigger configuration are Execute after, Repeat after, and Expires in. Execute after Defines when the workflow should start executing. Choose from the following options:
  • Immediate: Workflow executes as soon as it is deployed and activated.
  • Timestamp: Workflow executes at a specific date and time
  • Event: Workflow executes when a specified on-chain event occurs
  • Oracle price: Workflow executes when a token reaches a target price
  • Block number: Workflow executes at a specific block height
When you add trigger options, the Workflow Builder automatically adds additional configuration steps. For example, if you select Oracle price as a trigger, the workflow builder displays a Trigger Source Configuration where you specify the target price and select a token from the dropdown, as shown:

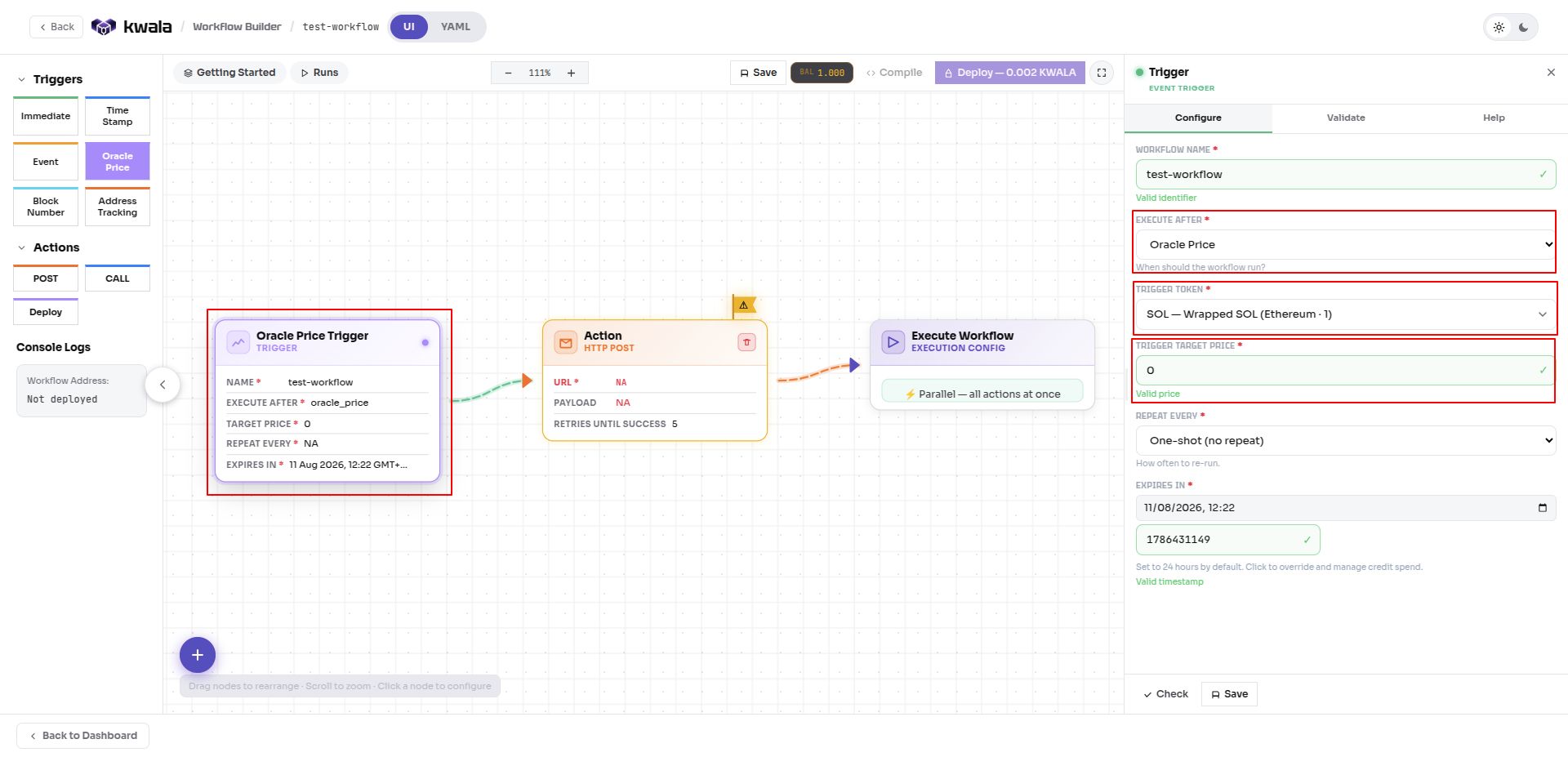

Oracle price trigger source configuration
Repeat after Determines if and when the workflow should repeat. Choose from the following options:
  • Time interval: Workflow repeats at regular intervals. For example, every hour or daily
  • Oracle price: Workflow repeats when price conditions are met again
  • Event: Workflow repeats each time the specified event occurs
  • N/A: Workflow executes only once and does not repeat
Similar to the Execute after trigger, selecting a Repeat after trigger displays additional configuration fields. For example, if you select Event as the Repeat after trigger, the builder displays a Recurring Source Configuration as shown:

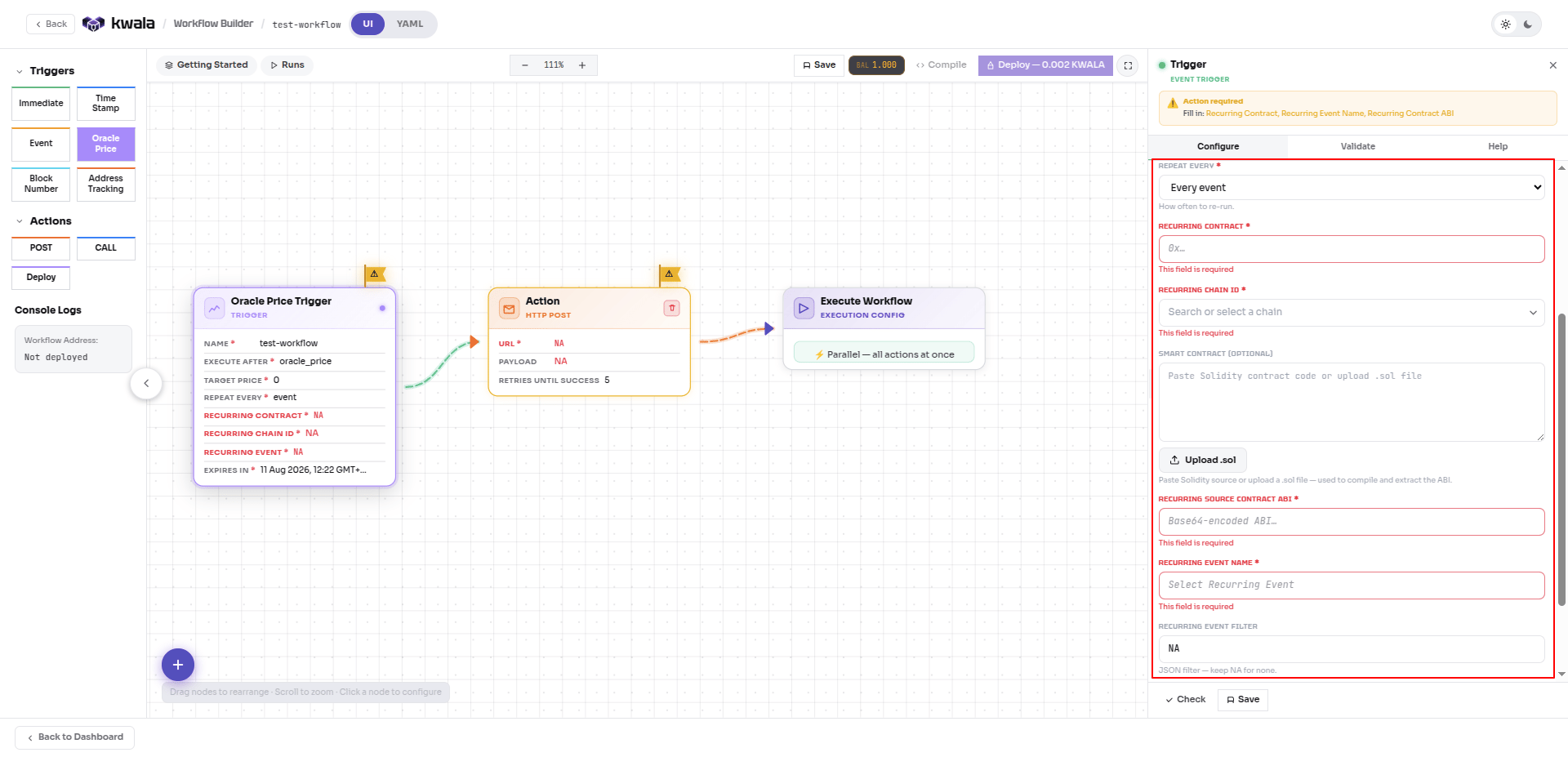

Recurring source configuration for event-based repeat
  • Recurring Source Contract: The smart contract address to monitor for recurring events. For example, 0x49e833337ece7afe375e44f4e3e8481029218e5c.
  • Recurring Chain ID: The blockchain network where the contract is deployed, such as 1 for Ethereum mainnet.
  • Smart Contract (Optional): Paste Solidity contract code or upload a .sol file to automatically extract the ABI
  • Recurring Source Contract ABI: The contract’s ABI for parsing events. This is auto-populated if the contract is verified on the blockchain or if you upload a contract file.
  • Recurring Event Name: Select the event to listen for from the dropdown. For example, Transfer(address,address,uint256).
  • Recurring Event Filter: Filter criteria for the event. Use NA if no filter is needed.
To find oracle contract addresses for different price feeds, visit the Chainlink Data Feeds directory.
Expires in Sets when the trigger expires. Use the calendar icon to select the expiry date and time. The Workflow Builder automatically converts this into a Unix timestamp.

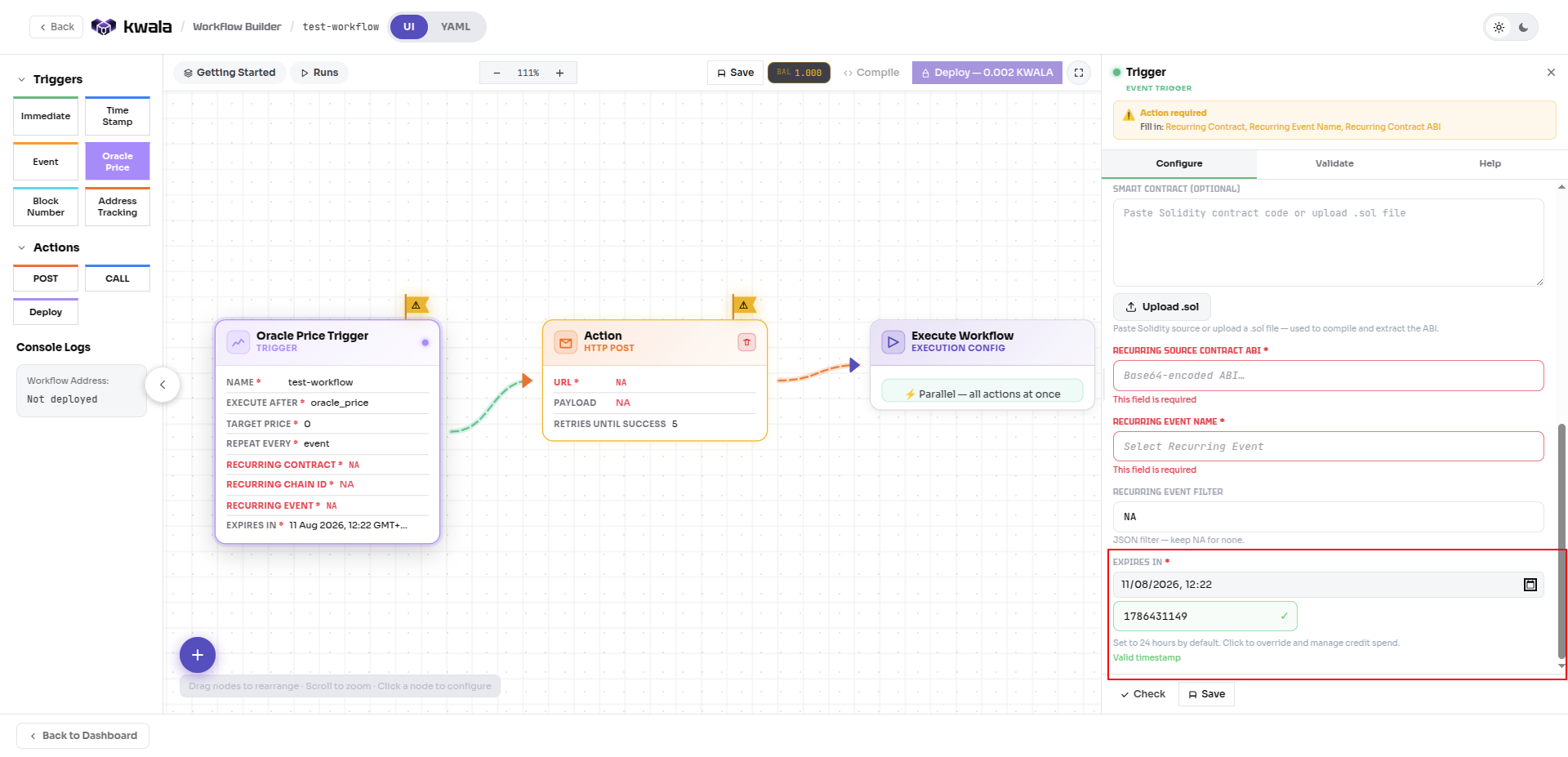

Expires in calendar picker

​
Optional trigger fields

Meta The Meta field is where you include additional metadata for your trigger. Use this field to store custom information that may be useful for tracking or debugging your workflow. Notification settings You can configure notifications to receive updates about your workflow’s execution status by providing:
  • Action Status Notification POST URL: The webhook endpoint where Kwala sends execution status updates
  • Action Status Notification API Key: API key for authenticating with your notification endpoint
Once you’ve configured your workflow triggers, Select Next to continue to action configuration.

​
Step 2: Configure actions

Actions define what your workflow does when the trigger activates. You can only add up to 10 actions per workflow.

​
Required fields for all actions

Every action requires the following fields:
  • Action Name: A descriptive identifier for the action (for example, transfer_funds or send_notification)
  • Action Type: The type of operation to perform. Kwala supports three action types:
    • POST: Make an API call to an external endpoint
    • CALL: Call a function on an existing smart contract
    • Deploy: Deploy a new smart contract
The workflow builder prompts you to fill out additional required fields depending on the action type you select. POST API call Use the POST action type to send HTTP requests to external APIs, webhooks, or notification services.

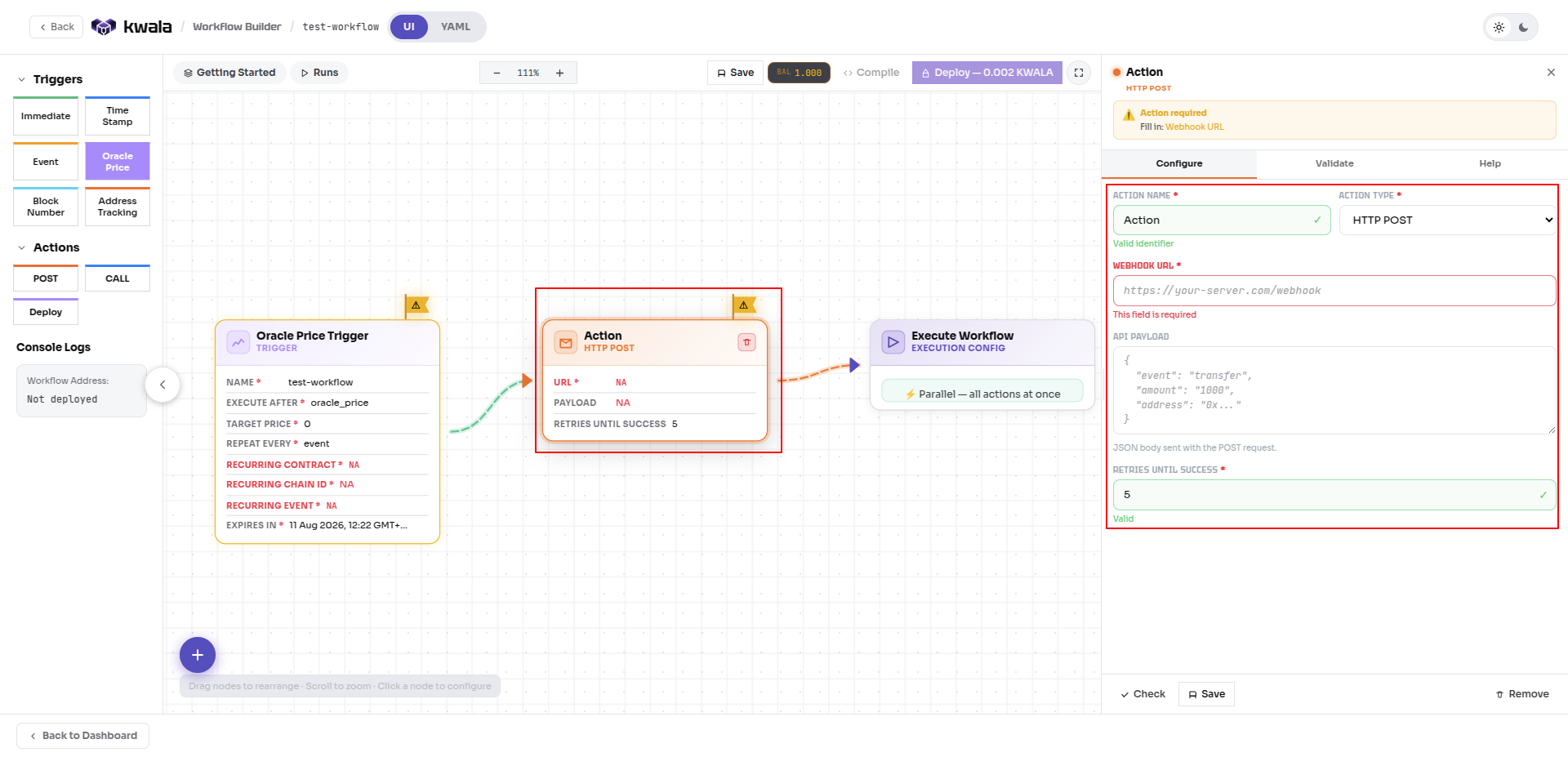

Action configuration settings
Required fields for POST actions:
  • API Endpoint: The URL to send the request to. For example, https://api.telegram.org/bot7754368882:AAHS4KbbOkl5rEHoBBIR8eljgwq2PARYLyY/sendMessage
  • API Payload (JSON): The JSON data to include in the request body. You can pass both fixed values and event parameters in a POST action.
  • Retries Until Success: Number of retry attempts if the request fails.
When adding target parameters for your action, you can use the event parameters from your trigger. Use re.event(0), re.event(1), re.event(2), or any other index to reference values from the triggering event. Example POST configuration The following example shows a POST action where both fixed values and event parameters can be used when calling web2 APIs.
    - Name: notification_action
    Type: post
    APIEndpoint: https://dev-api.kalp.network/webhook
    APIPayload:
      message: Transfer detected      # fixed value
      token: ETH            # fixed value
      amount: re.event(2)    # event parameter
    RetriesUntilSuccess: 5
Call smart contract function Use the CALL action type to interact with an existing smart contract by calling one of its functions.

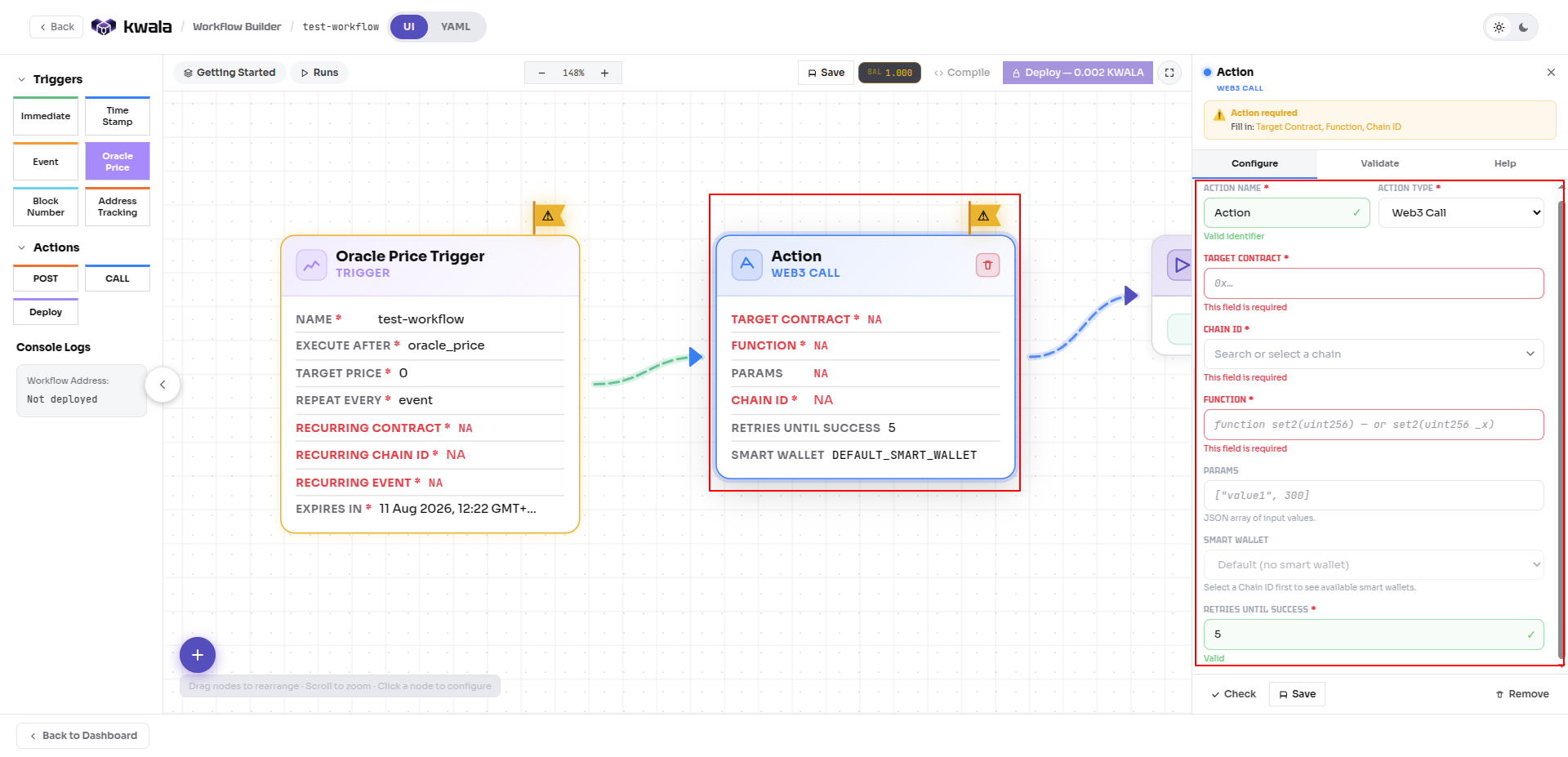

CALL action configuration
Required fields for CALL actions:
  • Target Contract: The address of the smart contract to interact with. For example, 0x65b2b850fee0e0c13d956ab5...
  • Target Function: The function signature to call. For example, function updateNFT(string memory userId, uint256 points)
  • Chain ID: The blockchain network where the contract is deployed. Select from the dropdown
  • Target Parameters: The parameters to pass to the function. You can use fixed values or reference event data dynamically with re.event(0), re.event(1), etc. Enter each parameter on a separate line.
  • Retries Until Success: Number of retry attempts if the call fails
Example CALL configuration
  - Name: transfer_funds
    Type: call
    TargetContract: 0x0f51bb10119727a7e5ea3538074fb341f56b09ad
    TargetFunction: function transfer(address recipient, uint256 amount)
    TargetParameters:
      - re.event(0)    # dynamic - recipient address from triggering event
      - 100            # fixed  - transfer amount
    ChainID: 1
    RetriesUntilSuccess: 5
Deploy smart contract Use the Deploy action type to deploy a new smart contract to a blockchain network.

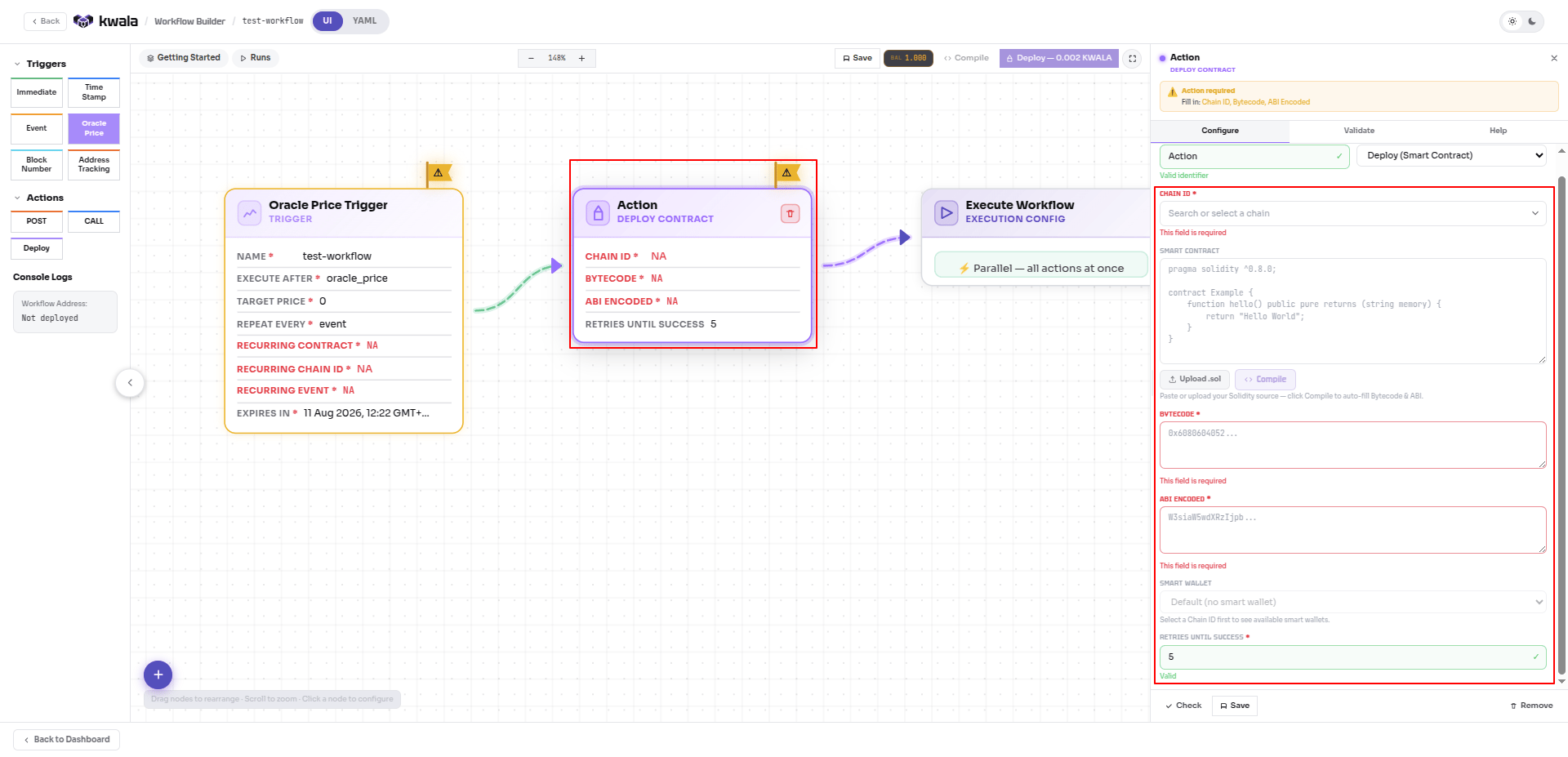

Deploy action configuration
Required fields for Deploy actions:
  • Chain ID: The blockchain network where the contract will be deployed. Select from the dropdown
  • Smart Contract: Upload a .sol file or paste your Solidity contract code directly. This is used to extract the bytecode and ABI
  • Bytecode: The compiled contract bytecode in hexadecimal format (for example, 0x608060405234801561001057600080fd5b50...). This is auto-populated if you upload a contract file
  • ABI Encoded: The contract’s ABI encoded in base64 format (for example, W3siaW5wdXRzIjpbXSwibmFtZSI6ImV4YW1wbGUiLCJvdXRwdX...). This is auto-populated if you upload a contract file
  • Retries Until Success: Number of retry attempts if deployment fails.

​
Adding multiple actions

Select Add Action to include additional actions in your workflow. You can add up to 10 actions per workflow. Each action can be a different type, allowing you to combine contract calls, API requests, and deployments in a single workflow. Select Next when you’ve finished configuring all actions.
For more detailed information about action types and advanced parameters, see Working with actions.

​
Step 3: Configure execution mode

Choose how your actions should be processed using the Execution Mode dropdown:
  • Sequential: Actions execute one after another in order. Use this when later actions depend on the results of earlier actions.
  • Parallel: All actions execute simultaneously. Use this when actions are independent of each other and speed matters.

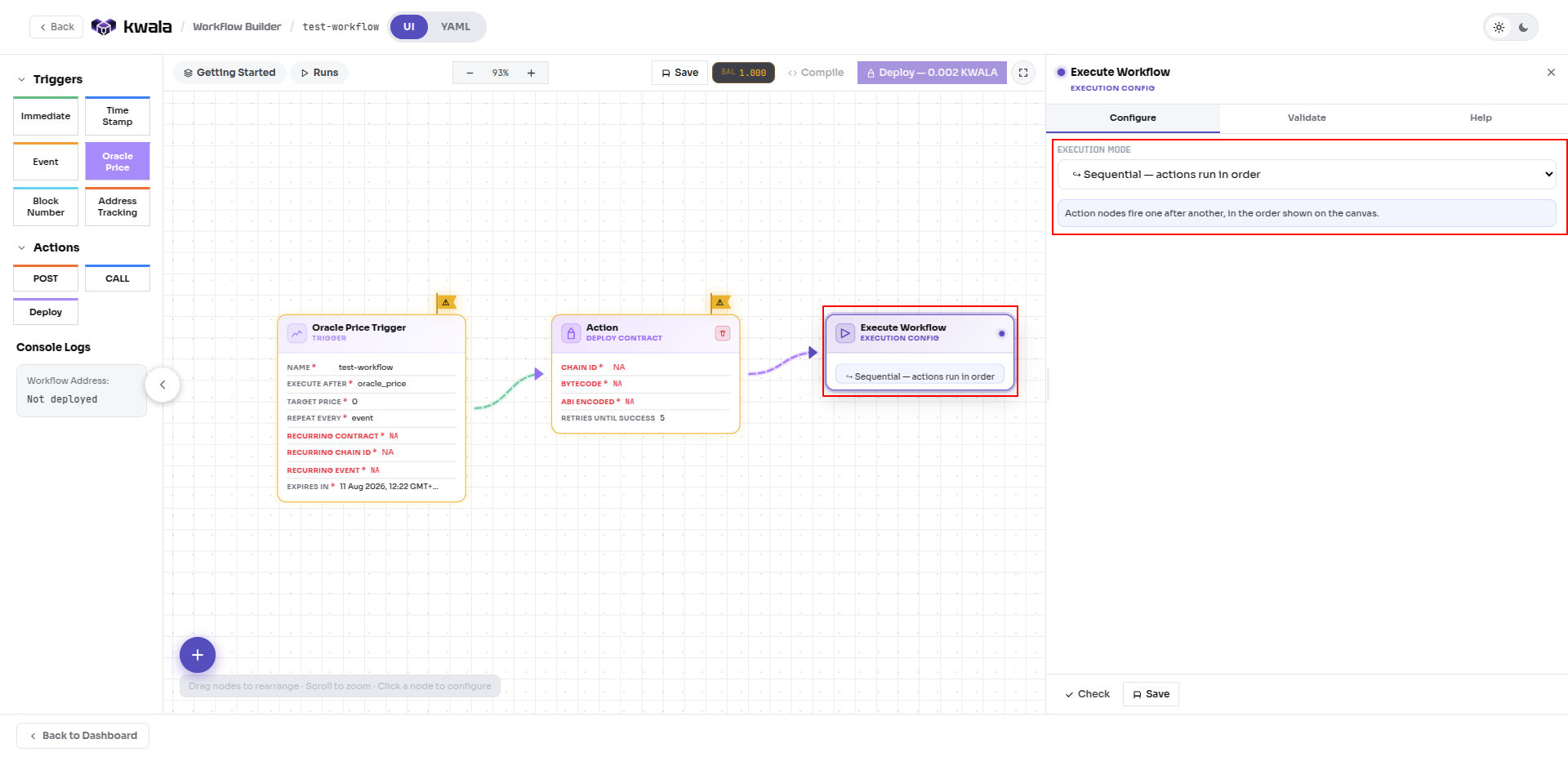

Execution mode selection
After selecting your execution mode, the builder displays a Workflow Summary that shows an overview of the configuration. The summary includes:
  • Workflow Name: The name you assigned to your workflow
  • Trigger Contract: The smart contract address being monitored
  • Actions Count: The total number of actions configured
  • Execution Mode: Whether actions run in parallel or sequential order

​
Review and create workflow

Review the summary to verify your configuration is correct. Once you’re satisfied, select Create Workflow to generate your workflow. After selecting Create Workflow, you should see a success message: “Workflow created - Your workflow has been generated and loaded to the editor”. The Workflow Builder generates a complete YAML automation script and opens it in the Workflow Editor for review. From there, you can make any additional edits before deploying.

​
