Monitor workflow

After deploying and activating a workflow, you can monitor its execution status, track successful and failed actions, and review detailed execution logs from the Kwala dashboard.

​

Prerequisites

• A deployed and activated workflow. See Deploy workflow.

​

View your workflows

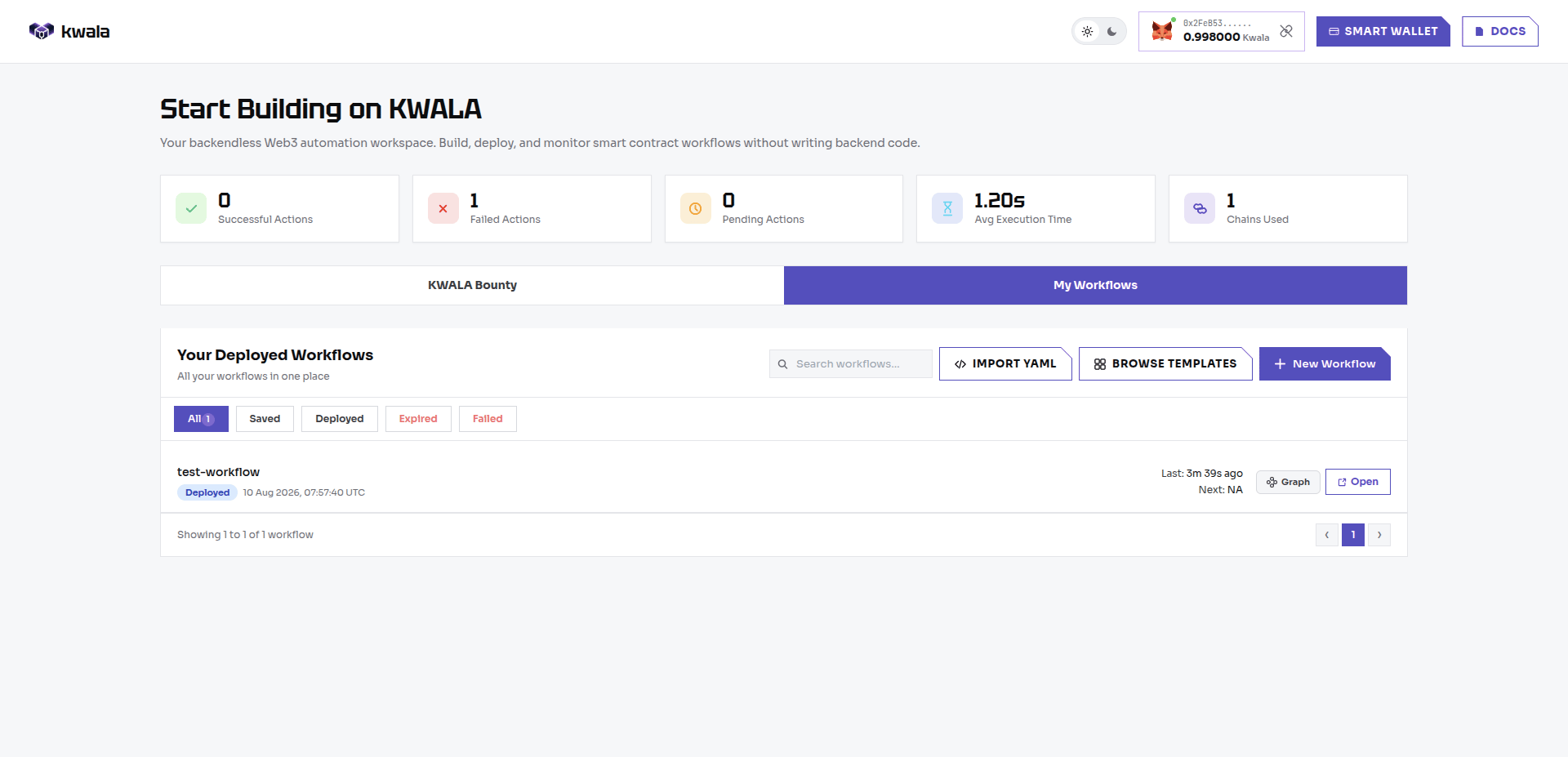

Navigate to the Kwala dashboard to view all workflows associated with your account. The My Workflows dashboard displays a cumulative overview of:

• Successful actions: Total number of actions that completed successfully
• Failed actions: Total number of actions that failed
• Average execution time: The average time taken to execute actions
• Chains used: The blockchain networks your workflows interact with

​

Successful actions

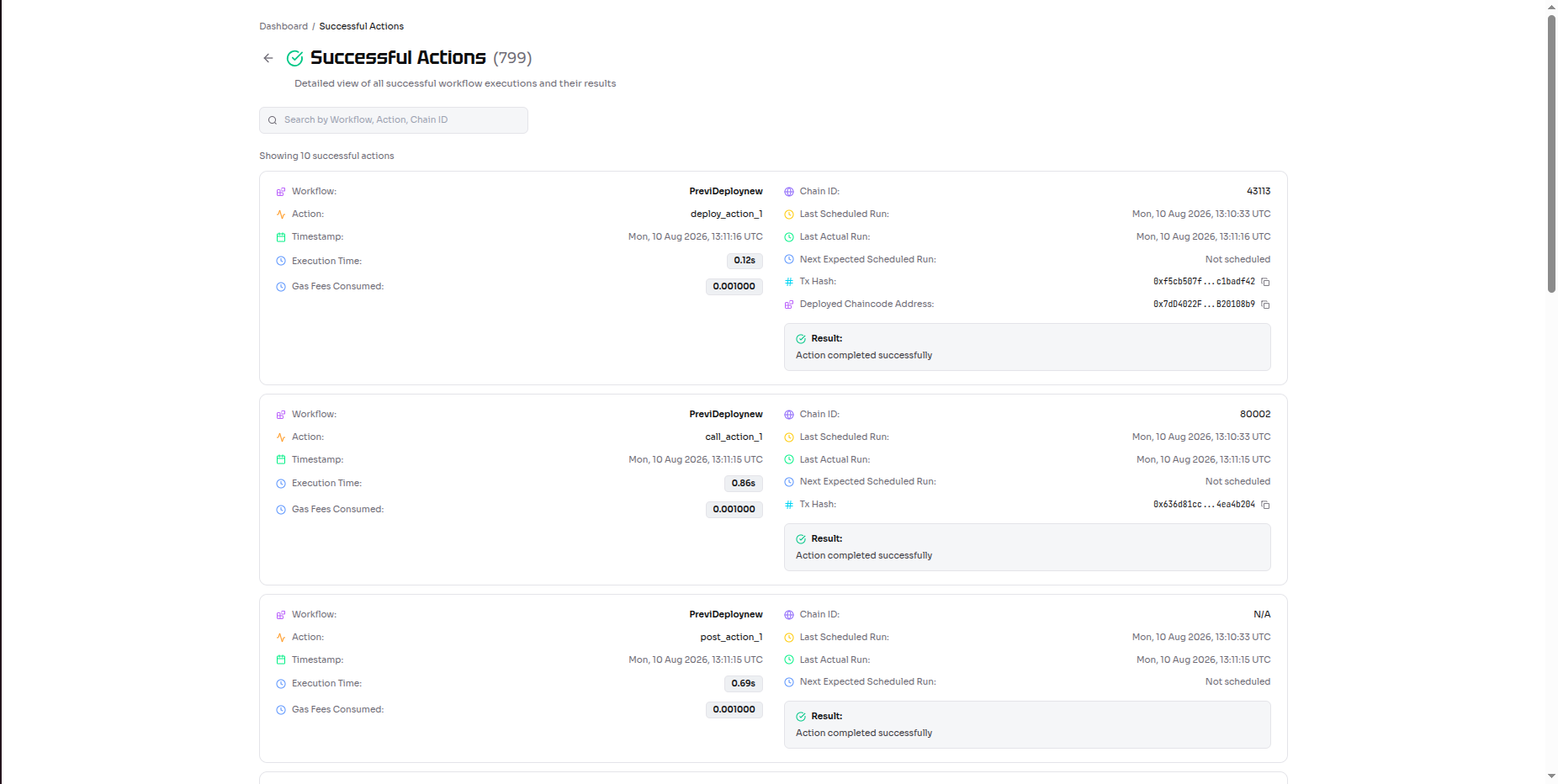

Select the Successful Actions tab to see a detailed view of all workflow executions and their results. Each record includes the following metadata:

• Workflow: The name of the workflow
• Action: The specific action that was executed
• Timestamp: When the action was executed
• Execution time: How long the action took to complete
• Gas fees: The gas consumed for the action
• Chain ID: The blockchain network where the action executed
• Action completed: Confirmation that the action finished successfully

​

Failed actions

Expand the Failed Actions pane to review actions that did not complete successfully. Use this information to identify and resolve workflow issues.

​

Chains used

The Chains Used section displays all blockchain networks your workflows have interacted with. Select this pane to view detailed on-chain activity.

​

View workflow details

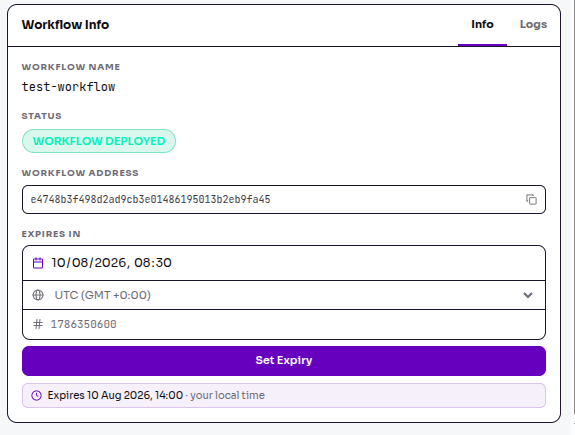

Select the workflow you want to monitor. The workflow information pane displays the current status of your workflow. You can also use the Console Logs tab to monitor action execution in real-time and troubleshoot issues.

​

Monitor workflows using Kwala Explorer

You can also monitor your workflows using the Kwala Explorer. The Explorer provides an alternative view of your workflow activity and execution history. To view your workflows in the Explorer:

1. Navigate to Kwala Explorer
2. Search the workflow using the workflow name or wallet address
3. View the overview of all workflows associated with your account

The overview displays:

• Total workflows deployed with your wallet address
• Total actions executed

​

Recent actions

Use the Recent Actions pane to view detailed execution records, including:

• Workflow ID: Unique identifier for the workflow
• Actions: Specific actions that were executed
• Chains: Blockchain networks used
• Gas fees: Gas consumed during execution
• Timestamp: When the action was executed
• Status: Execution status (success, failed, pending)

Selecting a Workflow ID opens detailed workflow information, including trigger configuration, action history, and execution logs.

​
